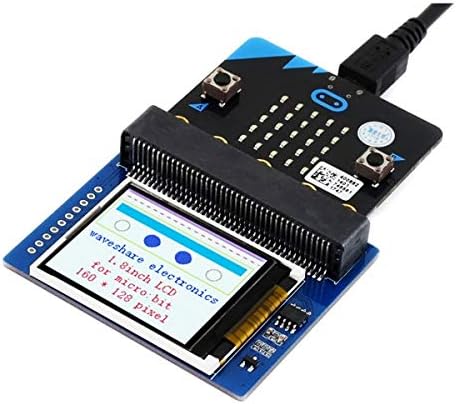

1.8” Colorful Display Module for micro:bit

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
Description:
1.8-inch Colorful Display Module for Micro:bit has an embedded ST7735S driver, It is a colorful lcd display module designed for the Micro:bit that supports 65k colors. It has onboard SRAM 23LC1024, used as display cache. It aslo includes Reserved solder pads for control interface, makes it easy to connect with Arduino/Nucleo boards.
Features:

• Micro:bit edge connector, directly pluggable.
• Embedded driver ST7735S, supports 65K colors.
• Onboard SRAM 23LC1024, used as display cache, no more out of memory.
• SPI interface, takes up only a few IO pins.
• Backlight adjustment via PWM.
• Reserved solder pads for control interface, make it easy to connect with Arduino/Nucleo boards.

Specifications:

• Driver: ST7735S
• Resolution: 160×128
• Display color: RGB, 65K colors
• Operating voltage: 3.3V
• Dimension: 61mm x 51.5mm (Approx.)

Package Contents:

• 1 x 1.8 inch LCD for Micro:bit

Package Dimensions ‏ : ‎ 8 x 7.1 x 2.8 cm; 30 Grams
Date First Available ‏ : ‎ 16 Sept. 2019
Manufacturer ‏ : ‎ SB Components
ASIN ‏ : ‎ B07XZCH65M
Manufacturer reference ‏ : ‎ SKU07875

Micro:bit edge connector, directly pluggable.
Embedded driver ST7735S, supports 65K colors.
Onboard SRAM 23LC1024, used as display cache, no more out of memory.
SPI interface, takes up only a few IO pins.
Backlight adjustment via PWM.
