Android Single Din Car Stereo with Bluetooth GPS Navigation, 10’’ 180°Rotating Vertical Touch Screen Car Radio with WIFI FM Radio IOS/Android Mirror Link + Rear View Camera 1+16G

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]

Product Description

System:
Android 10.0
Screen:
10-inch 2.5D tempered glass
Chipset:
8227L
Memory:
1GB (RAM) + 16GB (ROM)
Power output:
Up 4*45W
External microphone:
Support
USB:
Dual USB interface

Factory setting keywords:
8888
Power amplifier chip:
AC7388
Audio format:
APE/FLAC/WAV/MP3/WMA, etc.
Video format:
MKV/RMVB/AVI/MP4/MDV, etc.
Picture format:
PNG/JPEG/JPG/GIF/WBMP/BNP, etc.
Languages:
Chinese/English/French/Italian/Korean/Japanese/Arabic/Spanish/Portuguese/Russian/Turkish/Vietnamese/Hebrew/Polish/German

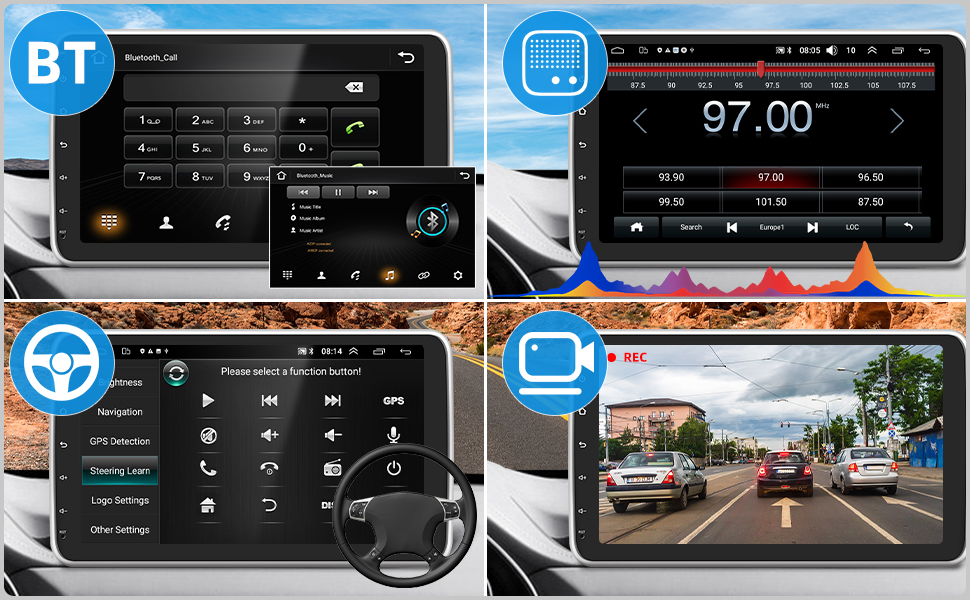

Bluetooth Car Radio: Built-in Bluetooth A2DP/hands-free/automatic loading phone book.
FM/RDS: Online music, you can transmit music to car stereo through FM, enjoy the original car stereo, 18 preset radio stations.
Steering Wheel Control: Supports original steering wheel control, do not support cars with CANBUS!
For 1 cable wiring: choose either key1 or key2 to connect.
For 2 cables wiring: If they are 1 positive and 1 negative – Positive connect either key1 or key2; Negative wire to the car radio’s black wire(ground).
Driving recorder: You can choose the recorder, there is playback on the car, you can keep the evidence.

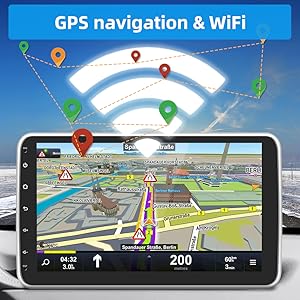

Android Naviation Car Stereo:

Head unit supports wifi or phone hotspot connection, allow to access the internet, download APPS, scan web, watch youtube video, etc.
Head unit is pre-installed APP “HERE WEGO”, allow to download offline Maps data.
Warm Tips: Plug into the cam-in wire, it will enhanced signals.

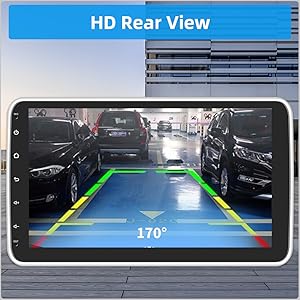

Backup Camera Input:

Car stereo with backup camera.
How to connect the reverse camera?
1. Camera video signal input plug to the back of radio correctly: the single wire”camera input”
2. Connect black wire connect to the negative of reverse lamp,
3. Connect red wire to the positive of reverse lamp
4. Connect Trigger wire to the positive of reverse lamp

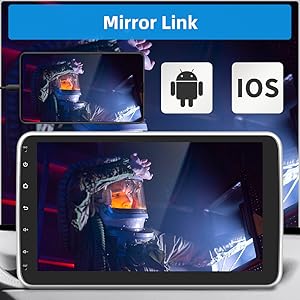

Android IOS Mirror Link：

Head unit support Android (two-way connection) phone mirror link via USB cable or phone hotspot
Support Iphone (one-way)mirror link via phone hotspot

1. Why can’t I turn on the car radio?
1.1 Please check the voltage of the car radio: 12V
1.2 When testing this car radio, you can combine the red wire and the yellow wire to connect to the positive pole of the power supply, and the black wire to the negative pole of the power supply.
1.3 Replace the same type of insurance test car radio.
Note: Please be sure to use our power cord to connect to our car radio, and not directly plug the original car plug into our machine.
IF you can not turn on head unit, please message us at first time!

Head Unit installation size fits for 2 din car center console.

Red cable – ACC (power switch)

Yellow cable – positive 12V battery

Black cable – 12V battery negative

“KEY1/ KEY2”: Only one of the cables is selected for wiring depending on the compatibility of the model and the steering wheel control system. If you use two steering wheel controllers, you need to connect 2 cables. please note: this function does not fit for some cars needed CANBUS.

“BACK”: Connects to the rear camera input port. do not forget to connect the trigger wire to the positive of the reverse lamp, otherwise no automatic reverse image.

“Lamp Control”: Connect it to the small lamp in the front of the car to turn on the button backlight.

“ANT CONT”: Connect the car radio antenna (no antenna, no wiring).

Signal Input: Connect to the input port of the reversing camera.

“Audio / Video”: Note: “AMP-CON” cable has no output voltage and must supply the amplifier or subwoofer via the car’s ACC ignition cable

Package Dimensions ‏ : ‎ 32.79 x 23.1 x 19.6 cm; 2.23 Kilograms
Date First Available ‏ : ‎ 12 May 2022
Manufacturer ‏ : ‎ Hodozzy
ASIN ‏ : ‎ B0B158R6YM
Country of origin ‏ : ‎ China

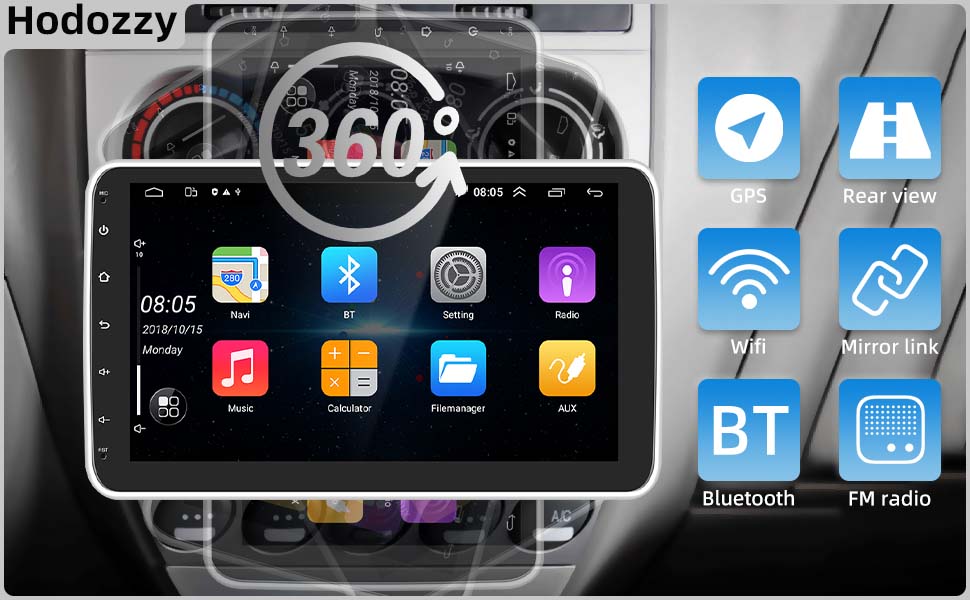

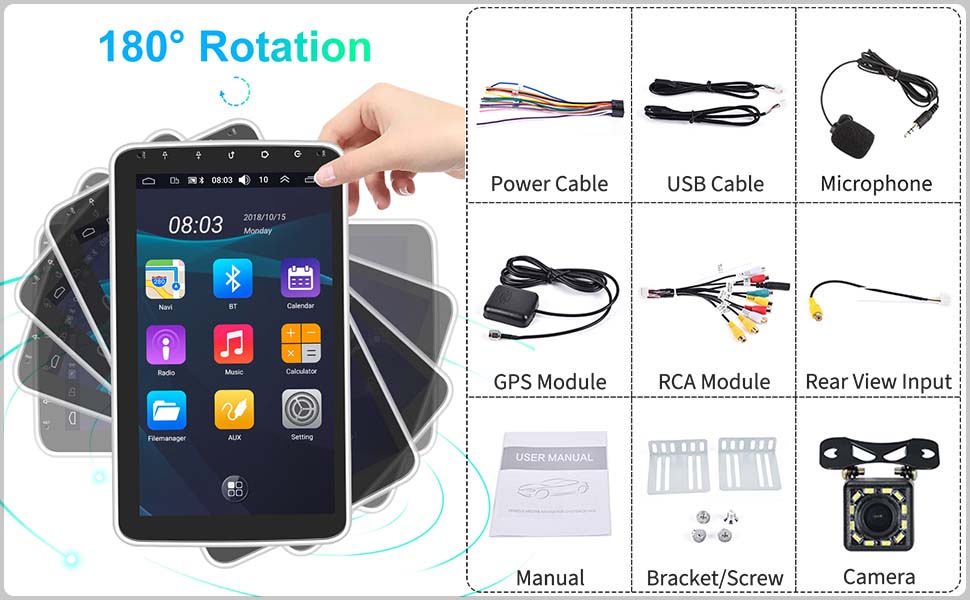

【Single Din Radio Rotating Vertical Touchscreen】10 inch HD 1080P 2.5D Tempered Glass Car Stereo, the screen can be rotated by 180°, and can be manually adjusted to a landscape or portrait display at any time.

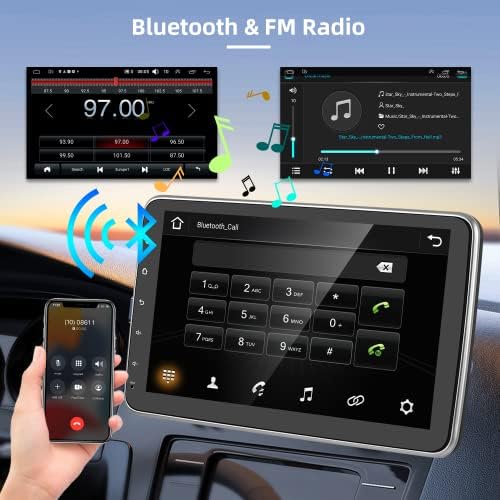

【Bluetooth & FM Radio】1 din Android car stereo with bluetooth, connect to your phone via Bluetooth for hands-free answering and making calls, playing music intelligently. The double din radio with FM radio, 18 preset stations, you can listen to real-time traffic, news broadcasts, weather forecasts etc.
【WIFI & GPS Navigation】 Android Single din Vertical car stereo built in offline map, after connecting to WIFI, you can download and update online maps anytime, anywhere, also allows you to use any application such as online Maps, YouTube, TikTok, Spotify, etc.
【Rear View Camera & Mirror Link】Single din Android stereo with backup camera, with easy installation and operation rear-view camera, when the vehicle shifts into reverse，the radio car stereo screen will automatically display the reverse image and record the traffic, make your daily reversing safer and more convenient. This head unit support Mirror Link function of most of smartphone

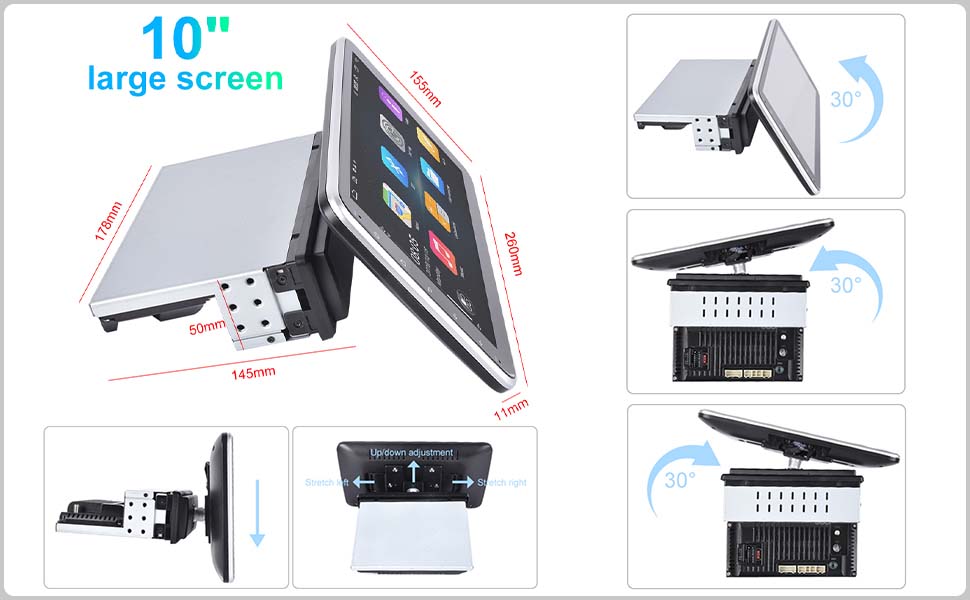

【Installation & Friendly Customer Service】 Installation size: 178*50mm, this fits in vehicle that has a single din slot in the dash, some cars may need wiring kit and the mounting kit for perfect fit. We have professional technical team and great customer service, we offer 30-day Money-Back, 12-month Replacement, life-time Technical Support.
