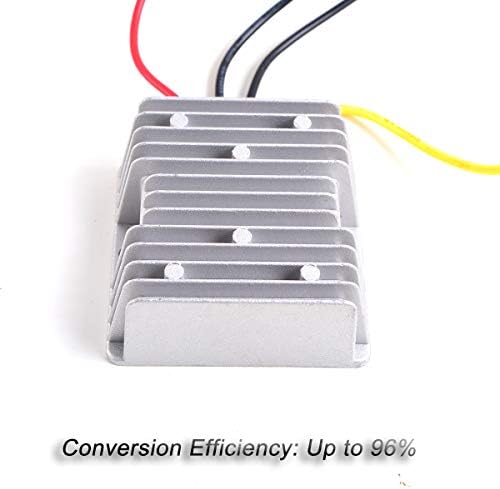

Car Voltage Stabilizer, DC 12V Regulator 12V Surge Protector 144W Heavy Duty for Car Battery Auto Truck Vehicle Boat Motor Solar System Protection (DC 10-36V Input, DC 12V Output)

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
Car Voltage Regulator , DC 12V Car Battery Voltage Stabilizer 12A 144W
The import high heat conduction organic silica gel filling and sealing technology, and compatible with multiple automatic protection function, overcurrent, short circuit, overtemperature, waterproof, moistureproof, widely used on Bus, CMB, large trucks, motor, GPS navigation, solar power, photovoltaic energy, bus display, taxi advertising screen, car audio, LCD TV, LED, intercom and monitoring system.

DC Voltage Regulator Safety Instructional Manual
1. The load connected to the output end of the power regulator should not be more than MAX LISTED LOAD POWER, any higher rated load will cause damage to the power regulator.
2. Can not used long time by the MAX. LISTED LOAD POWER.
3. Please connect the converter and your device according to the wiring diagram provided.

Features:
-IP67 Protection grade, waterproof and anti-shock protection.
-More than 96% power conversion efficiency.
-Si-Fe Cores magnetic loop, high temperature resistance and super stability.

12V DC Regulator Specifications:
Material: Plastic, Electronic Parts
Input: DC 12V(10V – 36V)
Output: DC 12V 12A 144W
Conversion Efficiency: More Than 96%
Overtemperature Protection: 150℃
Waterproof Grade: IP67
Connection Wire Length: 12cm(4.7 inches)
Mounting Hole Diameter: 5mm(0.2 inch)
Mounting Hole Distance: 65mm(2.56 inches)
Body Size: 74mm x 74mm x 31mm(L*W*H)
Net Weight: 264g

12V Regulator Connection:
Input: red(+) black(-)
Output: yellow(+) black(-)
Protection: input transient high voltage protection, output over-current protection, chip over-temperature protection.
(please note that there is no input short circuit protection and reversed connection protection, please connect wires correctly, or the power may be burnt)
Package Dimensions ‏ : ‎ 9.4 x 8.6 x 3.4 cm; 260 Grams
Date First Available ‏ : ‎ 28 Jun. 2020
Manufacturer ‏ : ‎ EKYLIN
ASIN ‏ : ‎ B08BRN3R5Y
Item model number ‏ : ‎ 12T12-12A

[12V DC Voltage Regulator] Heavy Duty DC 12V voltage stabilizer accept DC 10-36V input, DC 12V output. Max Current: 12A. High Power: 144W, usually for car battery auto truck vehicle boat motor solar system protection.
[Secure Your Devices] 12V surge protector protect your 12V electronics from the voltage unstability or peak surge. This power regulator is widely used on Bus, CMB, large trucks, motor, GPS navigation, solar power, photovoltaic energy, bus display, taxi advertising screen, car audio, LCD TV, LED, intercom and monitoring system.
[IP67 Waterproof Grade] This 12V DC stabilizer adopted Heat conduction organic silica gel filling and sealing technology to make it can be used outdoors withstanding heavy rains or other bad weathers.
[12V Regulator Specifications] Input: DC 12V(10V – 36V); Output: DC 12V 12A 144W; Conversion Efficiency: More Than 96%; Overtemperature Protection: 150℃; Connection Wire Length: 12cm/4.7 inch; Mounting Hole Diameter: 5mm/0.2 inch; Mounting Hole Distance: 65mm/2.56 inch; Body Size: 74mm x 74mm x 31mm(L*W*H); Net Weight: 264g.
[Always Stand Behind] Best After-sale Service. DOA or within 30 days free money back, or unconditional replacement within 2 Year. You could contact us anytime with any problem, we will try our best to solve the problem.
