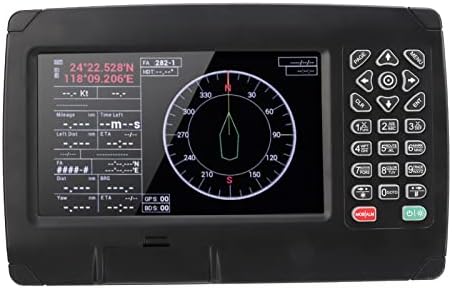

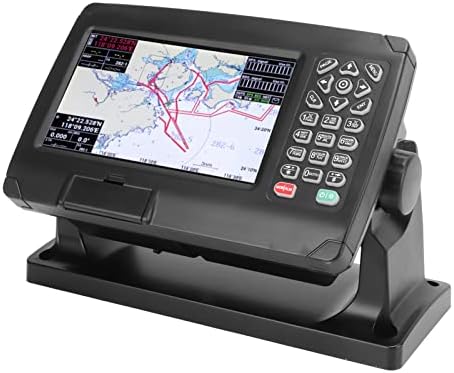

GPS Chart Plotter Satellite Navigator, Marine GPS Navigator, AIS Transponder with GNSS Antenna Dual Map System IPX6 Waterproof for Marine Boat

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
Specification:
Item Type: GPS Chart plotter
Material: ABS+silicone
Screen Type: Color TFT LCD Display
Screen Size: 7 inches
Resolution: 800 x 480
Screen Brightness: 500cd/㎡
Languages: English, Simplified Chinese, Traditional Chinese, Vietnamese, Malay, Korean, Turkish, Thai, Greek, Indonesian, Japanese, Burmese, Arabic, Spanish, French, Persian
Picture Mode: Standard chart, simple chart, full screen chart, AIS data, navigation data, satellite ephemeris, 3D navigation, compass
Storage Capacity: 50,000 waypoints, 50,000 mark points, 500 routes, 200 points per route, 1,000 tracks, 1.6 million track points
Interface: 2 way NMEA0183 output, 2 way NMEA0183 input (independent of each other, baud rate can be set independently)
WIFI: 802.11 b/g/n
Power Consumption: Less than 8W (voltage 24V)
Working Temperature: -15℃-+55℃
Storage Temperature: -20℃-+60℃
Waterproof Grade: IPX6
GNSS
Receive Channel: 72 channels
Receiving Frequency Band: GPS L1: 1575.42MHz; BDS B1: 1561.098MHz
Positioning Accuracy:
GPS and BDS 2.5m (CEP50%, open field)
GPS: 5m (CEP50%, open area)
BDS: 5m (CEP50%, open area)
Speed measurement Accuracy: 0.1m/s (50%at10m/s)
First Positioning Time: Less than 30 seconds (cold start), less than 1 second (warm start)
Compliant With Standards: IMO A.694(17) , IMO MSC 112(73), IEC 61108-1, IEC 61162-1, IEC 60945

Package List:
1 x GPS Chart Plotter
1 x GNSS Antenna
1 x 8 Core Data Cable
1 x 2 Core Power Cord
1 x Mounting Base Bracket
2 x Fixed Knob
4 x Base Fixing Screws
4 x Small Screw
1 x User Manual

Precise positioning: GNSS chartplotter supports Beidou and GPS dual-mode positioning, combined with self-developed SOG and COG filtering algorithms, high receiving sensitivity and accurate positioning.
Large-capacity storage: Using high-speed and stable flash memory chips, it supports storage of 50,000 waypoints, 50,000 mark points, 500 routes, 1,000 tracks, and 1.6 million track points.
Custom Settings: Support to display your own ship anywhere on the screen to expand the navigation area. Custom data names, symbol styles and colors are also supported.
Waterproof shell design: plastic shell design, waterproof, dustproof, anti-interference, fast heat dissipation, durable. The waterproof and dustproof grade is IPX6.
Dual chart system: Support C MAP MAX and XINUO MAP dual chart system, users can switch independently. Built-in global charts, providing regular updates of XIUO charts.
