Vehicle Backup Side View Camera 12V/24V 12 LED IR Night Vision 4 Pin Reverse Rear View Camera Waterproof IP68 with 5m Video Cable for Truck Bus Trailer RV 5th Wheel Heavy Duty (4PIN Connector)

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
* Waterproof IP 68, Can be used both in car and home
* 1/3″ 7070 Mirror imaging sensor with No Grid Lines
* 4Pin Video Output Connector Side View Camera
* 480 TV Line
* Support PAL Video system
* Includes 12 IR LED, support 10-15ft night vision
* Build with 2.8mm len 120°wide viewing angle
* Applicable to variety of Vehicles: Car,BUS,Truck,RV,Motorhome,Van etc
* Can help avoid incidents and accidents abrasion well
* Easy to install

Specification:

Image Sensor: Mirror image No Grid Lines
Horizontal Resolution:480 TVL
Minimum Illumination:0Lux
Number of pixels:720(H)*586(V), 480P
Lens: 2.8mm
Diagonal Viewing Angle:120 degree
Signal to noise ratio:>48db(AGC OFF)
TV System:PAL
Scan frequency:50Hz-60Hz
Electronic Shutter: 1/60 ~ 1/15,000sec
Backlight compensation:Auto
White Balance:Auto Tracing
Auto Gain Control:Automatic
Night vision: Yes
Synchronous System:International Synchronization
work Temperature: -20°C~+60°C
Waterproof:IP 68

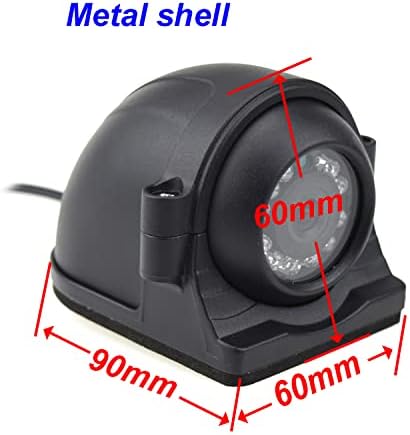

Housing Material: Iron/Aluminum
Video Output:4 Pin Connetor interface,1.0Vp-p.1.5ω.
Power:DC 12V-24V
Current Consumption:Less than 50MA

Important:
This products only work with the 480p 4pin monitor
if your monitor’s video input is RCA connector,or your monitor only support 720p/1080p signal,it will not work
Is Discontinued By Manufacturer ‏ : ‎ No
Product Dimensions ‏ : ‎ 9 x 6 x 6 cm; 400 Grams
Date First Available ‏ : ‎ 26 Dec. 2018
Manufacturer ‏ : ‎ ZhanHongXiang
ASIN ‏ : ‎ B07M9TPZ37
Manufacturer reference ‏ : ‎ CE-4PIN
Country of origin ‏ : ‎ China

12LED 0 LUX Night Vision Waterproof IP68,Build with 2.8mm len 120° wide viewing angle Rear View Camera Without distance line.
Come with 5m/16ft 4-Pin Aviation Connector Extension Cable
Support All of 12V/24V Vehicle ,Best for Bus Truck Trailer Camper 5th Wheel and all of the Other Heavy Duty
It’s so nice to know what is going on behind you when your Vehicle is Backing – with the mirror extensions we were not able to see everything.
Package Included: 1 x 4Pin 12 LED IR Car Rearview Camera,1 x 5m 4Pin Cable
