GPS USB Receiver Antenna Gmouse For Laptop PC Car Marine Navigation

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
Please Search U-CENTER V8.29 and install DRIVER of this USB GPS receiver unit. the usb serial port driver or sensor driver will automatically installed. then choose port or sensorAPI, this device will be work well.

How to work with Raspberry Pi?
Just installed gpsd, set config to /dev/ttyAMA0, plugged into a USB port and rebooted

This device Powered by a Ublox GPS chipset, High sensitivity and Strong Singal. The u-center GNSS evaluation software for automotive, mobile terminal and infrastructure applications provides a powerful tool for evaluation, performance analysis and configuration of u-blox GNSS receivers. Its unique flexibility makes the u?center GNSS evaluation software an invaluable tool for evaluation, analysis and configuration of u-blox GNSS receivers. u-blox GNSS receivers can be configured using the u-center evaluation software

Electrical Characteristics:
1.GPS Chipset: U-BLOX UB-6010
2.Sensitivity: -162 dBm ~-158 dBm
3.Channels: 56 channelS

Specifications:

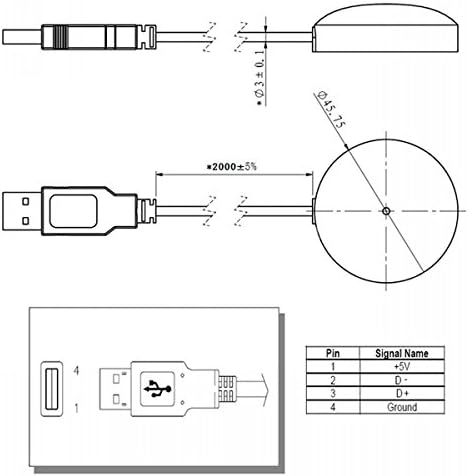

1.USB Cable length: 2M
2.Dimension: 45*38*13 mm
3.Connector: USB Port 4. Magnetic Base

Protocol:
1.NMEA 0183 v2.3
2.Support:VTG,GLL,TXT ublox binary and NMEA Command
3.Default:GGA,GSA,GSV,RMC

Package Include:
1.GPS Receiver *1 2.GPS Driver Disc *1 1.NMEA 0183 v2.3
2.Support:VTG,GLL,TXT ublox binary and NMEA Command
3.Default:GGA,GSA,GSV,RMC

Package Include:
1.X1 USB GPS Receiver
2.X1 USB GPS Driver Disc *1

Is Discontinued By Manufacturer ‏ : ‎ No
Product Dimensions ‏ : ‎ 200 x 5 x 5 cm; 82 Grams
Date First Available ‏ : ‎ 9 Nov. 2018
Manufacturer ‏ : ‎ shenzhen you chu pin ke ji you xian gong si
ASIN ‏ : ‎ B073P3Y48Q
Item model number ‏ : ‎ 5
Country of origin ‏ : ‎ China

Working process: Menu-> Receiver->Port or SensorAPI to get data from GPS Receiver after instialled U-CENTER V8.2X GNSS software (Software can be downloaded from CD-ROM and Official website
Compatible: Win 10/ Win 8/ Win 7/XP. Free GNSS Evaluation Software. 56-Channel All-IN-VIEW Tracking
U-BLOX 7 Chipset inside, USB Port, Magnetic base, High sensitivity and Strong Singal,Protocol: NMEA 0183/ Japan QZSS/ India Gagan/ WAAS/ EGNOS/ MSAS Support. High Tracking Sensitivity
Cable Length 6.5 Ft / 2 Meters , IPX4 Water Resistance / Dust-tight.
Support OpenCPN, Realtime Google Earth Pro and maps. 1 Year Warranty
